As The Trustworthy name in the Global Market We Modern Industrial Corporation is engaged in Manufacturing, Exporting & Supplying a wide Range Of Sheets, Plates & Coils. Our Products Are Fabricated To Meet International Industry Standards. These Are Made By Utilizing Premium Quality Material & Advance Technology.

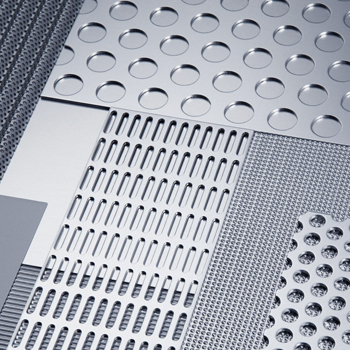

We provide these products in vary form such as Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, etc, we also offer this product in different types such as Shim Sheet, Perforated Sheet, Chequered Plate, Rolls, Ring, and so on. Our products widely used in different industries like power, engineering, construction, cement, chemical, and many more. These fine finished Sheets, Plates & Coils are manufactured using premium quality of raw material to offer best of quality, reliability, performance and efficiency.

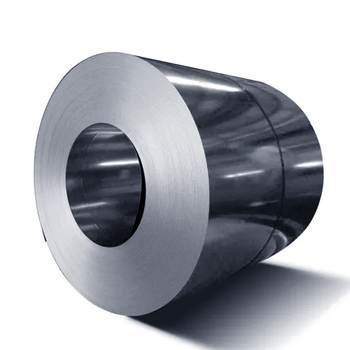

Coils we supply ensures high durability, tensile strength and resistivity to adverse conditions Additionally, Customers are eased with the availability of the Cold Rolled Stainless Steel Coils in varied grades, sizes dimensions and finishes as pre the specifications provided.

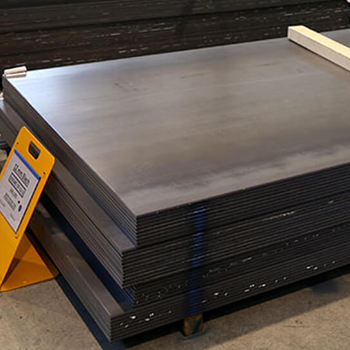

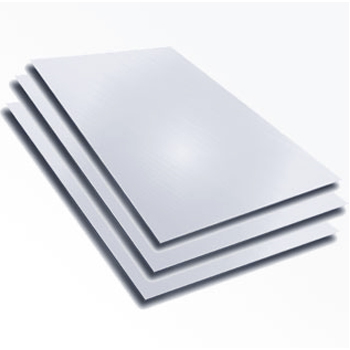

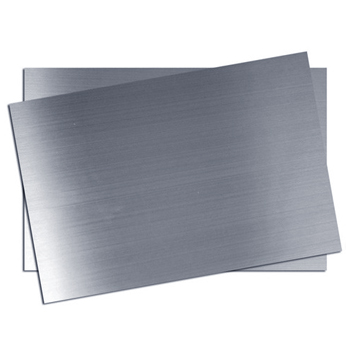

Sheets and Plates are used in most of the industries like automobile, industrial machinery, aerospace, chemical processing, food processing, constructions, defense, power generation, petrochemical, marine industries and more. Plates are used in machines, structural sections and larger fabrications, whereas sheets are used in manufacturing equipment, appliances and enclosures.
| Thickness | 4mm-100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, Mirror, Checkered, Embossed, Hairline, Sand Blast, Brush, Etching, etc |
| Finish | Hot Rolled Plate (HR), Cold Rolled Sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

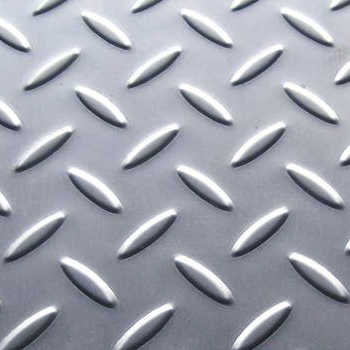

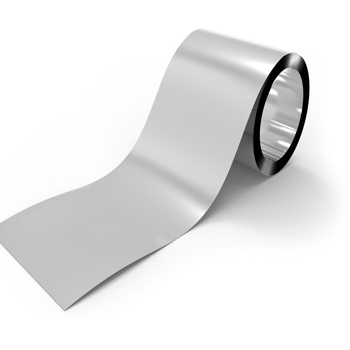

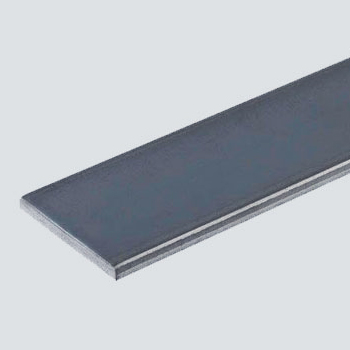

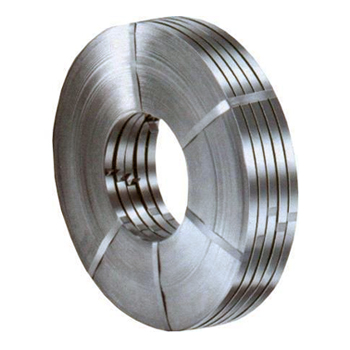

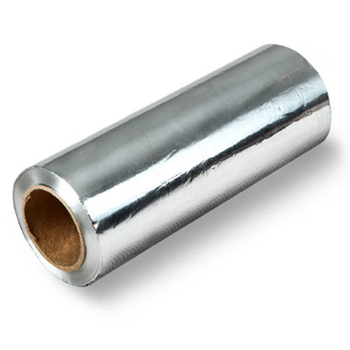

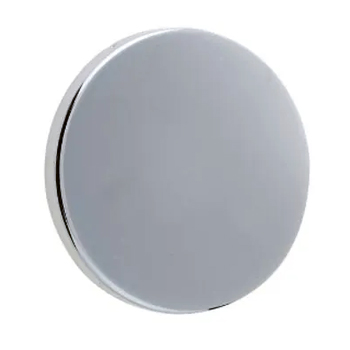

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |

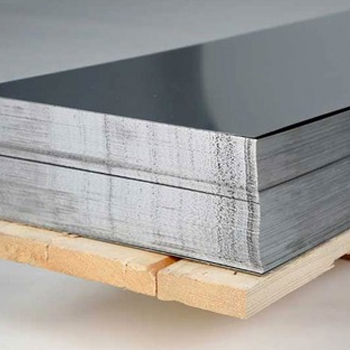

Plates as per ASTM A240, Gr. TP 304,304L, 304LN, 309, 309S, 309H, 310H, 316, 316L, 316H, 316LN, 316TI, 317, 317L, 321, 321H, 347, 347H, 409, 410, 420, 430 etc.
ATSM A283, A285, A515, ASTM 516, ASTM A105, ASTM A234, LF1, LF2, ASTM A106, ASTM A333, ASTM A53, API 5L etc.

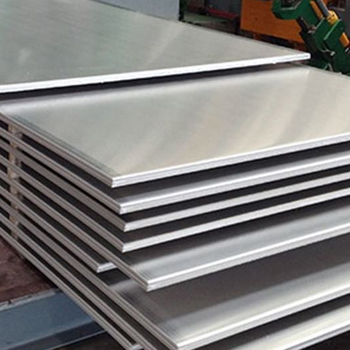

ASTM / ASME SB 163 UNS 2200 ( NICKEL 200 ), ASTM / ASME SB 163 UNS 2201 (NICKEL 201 ), ASTM / ASME SB 163 / 165 UNS 4400 (MONEL 400 ), ASTM / ASME SB 464 UNS 8020 ( ALLOY 20 / 20 CB 3 ), ASTM / ASME SB 704/705 UNS 8825 INCONEL (825), ASTM / ASME SB 167 / 517 UNS 6600 (INCONEL 600 ), ASTM / ASME SB 167 UNS 6601 ( INCONEL 601 ), ASTM / ASME SB 704 /705 UNS 6625 (INCONEL 625), ASTM / ASME SB 619/622/626 UNS 10276 ( HASTELLOY C 276)

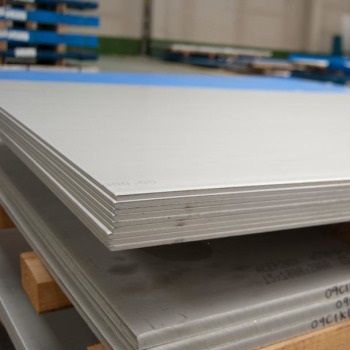

UNS S31803, UNS S32205, UNS S32750, UNS S32760

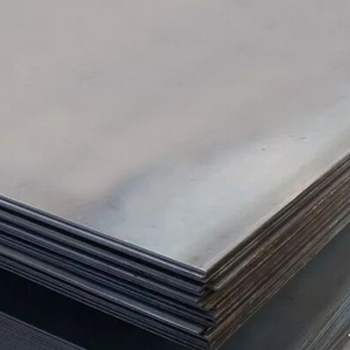

ASTM A387 Gr.11/22/5/9/91, ASTM A335 Gr.5/9/11/22/91, 4140, 4145, 4140H, 4145H etc.
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
| Thickness | Thickness | Size Range | Surface Area per Unit weight | Approx Weight per Sheet | ||
|---|---|---|---|---|---|---|
| inches | mm | lbs/ft² | kg/m² | lbs | kg | |
| 0.015 | 0.381 | 36 x 96 | 0.630 | 3.07566 | 15.12 | 6.84936 |
| 0.015 | 0.381 | 36 x 120 | 0.630 | 3.07566 | 18.90 | 8.5617 |
| 0.0178 | 0.45212 | 36 x 96 | 0.756 | 3.690792 | 18.15 | 8.22195 |
| 0.0178 | 0.45212 | 36 x 120 | 0.756 | 3.690792 | 22.68 | 10.27404 |
| 0.0178 | 0.45212 | 48 x 96 | 0.756 | 3.690792 | 24.19 | 10.95807 |
| 0.0178 | 0.45212 | 48 x 120 | 0.756 | 3.690792 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 30 x 96 | 1.008 | 4.921056 | 20.16 | 9.13248 |
| 0.0235 | 0.5969 | 30 x 120 | 1.008 | 4.921056 | 25.20 | 11.4156 |
| 0.0235 | 0.5969 | 36 x 96 | 1.008 | 4.921056 | 24.19 | 10.95807 |
| 0.0235 | 0.5969 | 36 x 120 | 1.008 | 4.921056 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 36 x 144 | 1.008 | 4.921056 | 36.29 | 16.43937 |
| 0.0235 | 0.5969 | 48 x 96 | 1.008 | 4.921056 | 32.26 | 14.61378 |
| 0.0235 | 0.5969 | 48 x 120 | 1.008 | 4.921056 | 40.32 | 18.26496 |
| 0.0235 | 0.5969 | 48 x 144 | 1.008 | 4.921056 | 48.39 | 21.92067 |
| 0.0291 | 0.73914 | 30 x 96 | 1.260 | 6.15132 | 25.20 | 11.4156 |
| 0.0291 | 0.73914 | 30 x 120 | 1.260 | 6.15132 | 31.50 | 14.2695 |
| 0.0291 | 0.73914 | 36 x 96 | 1.260 | 6.15132 | 30.24 | 13.69872 |
| 0.0291 | 0.73914 | 36 x 120 | 1.260 | 6.15132 | 37.80 | 17.1234 |
| 0.0291 | 0.73914 | 36 x 144 | 1.260 | 6.15132 | 45.37 | 20.55261 |
| 0.0291 | 0.73914 | 48 x 96 | 1.260 | 6.15132 | 40.32 | 18.26496 |
| 0.0291 | 0.73914 | 48 x 120 | 1.260 | 6.15132 | 50.41 | 22.83573 |
| 0.0291 | 0.73914 | 48 x 144 | 1.260 | 6.15132 | 60.49 | 27.40197 |
| 0.0355 | 0.9017 | 30 x 96 | 1.512 | 7.381584 | 30.24 | 13.69872 |
| 0.0355 | 0.9017 | 30 x 120 | 1.512 | 7.381584 | 37.80 | 17.1234 |
| 0.0355 | 0.9017 | 36 x 96 | 1.512 | 7.381584 | 36.29 | 16.43937 |
| Size (mm) | Weight per Sheet (Kg) |
Size (mm) | Weight per Sheet (Kg) |
|---|---|---|---|
| 2000 x1000 x 0.7 | 11.5 | 2500 x 1250 x 1.5 | 38.4 |
| 2500 x1250 x 0.7 | 17.9 | 3000 x 1500 x 1.5 | 55.3 |
| 2000 x1000 x 0.9 | 14.7 | 2000 x 1000 x 2.0 | 32.7 |
| 2500 x1250 x 0.9 | 23.0 | 2500 x 1250 x 2.0 | 51.2 |
| 2000 x1000 x 1.0 | 16.4 | 3000 x 1500 x 2.0 | 73.7 |
| 2500 x1250 x 1.0 | 25.6 | 2000 x 1000 x 2.5 | 40.9 |
| 3000 x1500 x 1.0 | 36.8 | 2500 x 1250 x 2.5 | 63.9 |
| 2000 x1000 x 1.2 | 19.6 | 3000 x 1500 x 2.5 | 92.1 |
| 2500 x1250 x 1.2 | 30.7 | 2000 x 1000 x 3.0 | 49.6 |
| 3000 x1500 x 1.2 | 44.2 | 2500 x 1250 x 3.0 | 77.5 |
| 2000 x1000 x 1.5 | 24.6 | 3000 x 1500 x 3.0 | 112.0 |
